Description

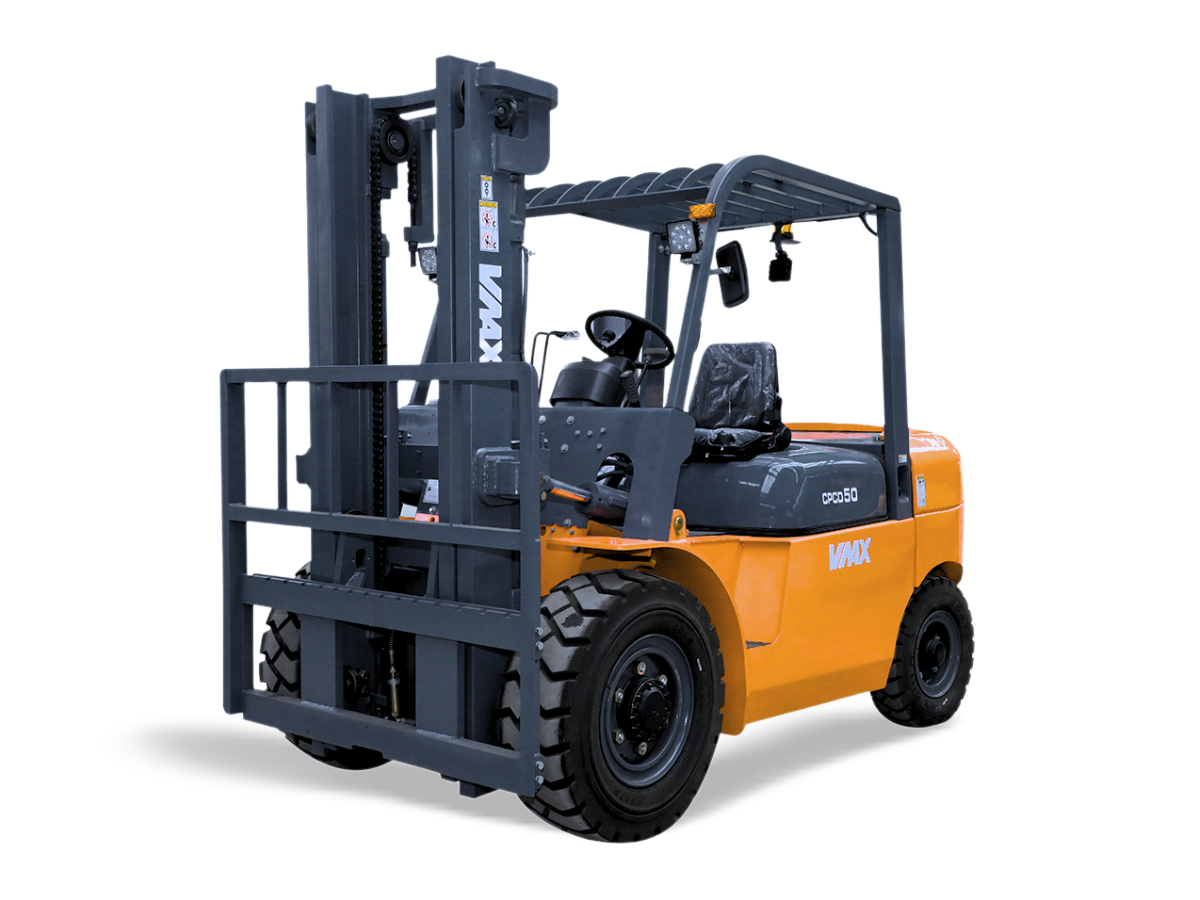

CPCD50 Engine Isuzu 6BG1 Japan,
4 Ban / 6 Ban
Spesifikasi Produk :
Capacity : 5000 kg
Load centre : 600 mm
Lift height : 3000 mm
Fork size : 1220 mm x 150 mm x 55 mm
Mast tilt angle : 6° / 12°
Front overhang : 590 mm
Ground clearance : 200 mm
Overall length : 3440 mm
Overall width : 1995 mm
Height, mast lowered : 2500 mm
Height, mast extended : 4380 mm
Overhead guard height : 2450 mm
Turning radius : 3250 mm
Min. Intersecting aisle : 2960 mm
Travel speed : 26 km/h
Lift speed : 510 mm/s
Gradeability : 35 %
Tire (Front/Rear) : 8.25-15-14PR / 8.25-15-14PR
Wheelbase : 2250 mm
Self weight : 8160 kg
Battery voltage : 24 V / 2 x 80 Ah
